Tube Fitting and Valves for Instrumentation
Product Introduction
Two ferrule fittings have been successfully tested against ASTM-F1387 with flawless results. These fittings are available in a variety of configurations including unions, elbows, tees, crosses, caps, plugs, connectors, adapters, and reducers; and include options like port connectors, tube stub, AN fittings, NPT thread, SAE thread, BSP threaded (BSPP and BSPT), butt weld, and socket weld.
Double and Single Ferrule, Fractional sizes: 1/16” to 2”, Metric sizes: 3mm to 50mm, Temperature range: -325°F to 1200°F.

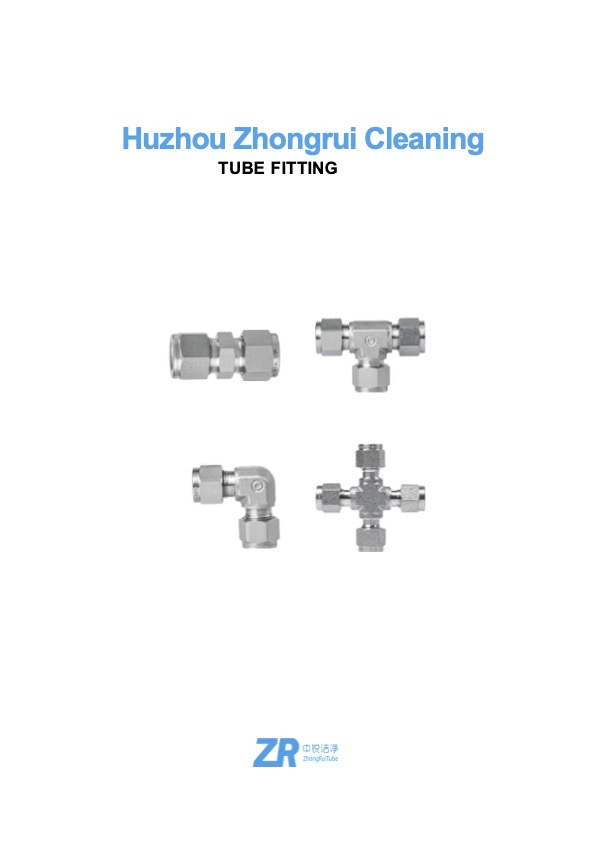

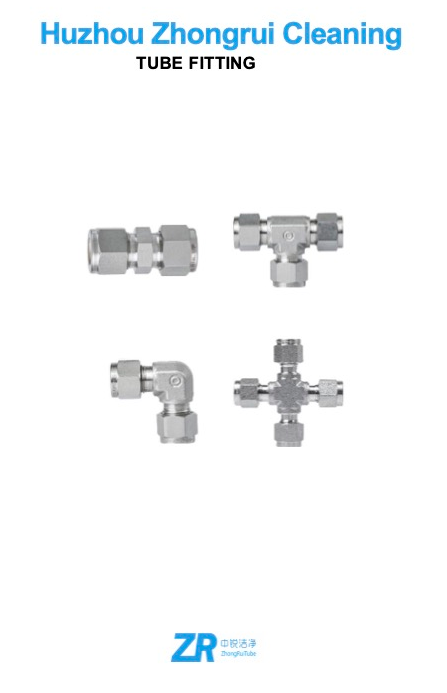

Product Manual
Quality Assurance
Our policy is to provide excellent customer support and service while being dedicated to manufacturing an high quality product. Through every process, form manufacturing to technical support, each team member strives to maintain our quality standards.
Interchageability
Our tube fitting are manufactured to be completely interchangeable with other leading tube fitting manufacturers. Thesting and the exceptional quality of the products assure 100% reliability when intermixing component parts of compatible makes and brands.
Hardness Information
In general metal tubing should be fully annealed to work properly with our tube fittings. While most stainless steel tubing is restricted to a maximum ROCKWELL HARDNESS of Rb90, many users specify that this hardness be further restricted to Rb80. Such tubing lowers the installed cost because it is more easily bent and installed. While our stainless steel tube fitting may be used on stainless steel tubing with a hardness of Rb90 maximum, We suggest that whenever possible, specify a maximum hardness of Rb80.
Wall Thickness
The wall thickness selection should be based on the operating pressure, temperature, and shock conditions.
Tube Selection
Poper tubing selection is essential to the performance of a tubing systeam. Consider a systems pressure, flow, temperature, environment, and compatibility with the process fluids when choosing the tubing material, size, and wall thickness.
Application
We has been concentrating on sustaining research & development, quality improvement and stable technology in high purity products to take a technical superiority of Semiconductor equipments, PDP and LCD equipments in 21st century
Our products have been recognized by providing reliable products to Fluid & Control System in Chemical & Petrochemical industry to measure the pressure, flow and temperature.
3) Power Plant
We provides Valves & Fittings to Fluid & Control System in Hydro/Thermal, Combined Cycle, Nuclear & Desalination Plant and keeps on the reputation through the acquisition of ASME Nuclear Quality System Certificate.
4) Oil & Gas
Our Valves & Fittings are applied to Fluid & Control System in LNG Carriers and other vessels .
Certificate Of Honor
ISO9001/2015 Standard
ISO 45001/2018 Standard
PED Certificate
